Jeep Gladiator JT year 19-24

Does not fit Model 3,0 L V6 ECO Diesel Engine

Does not fit the Mojave Edition and Rubicon 392

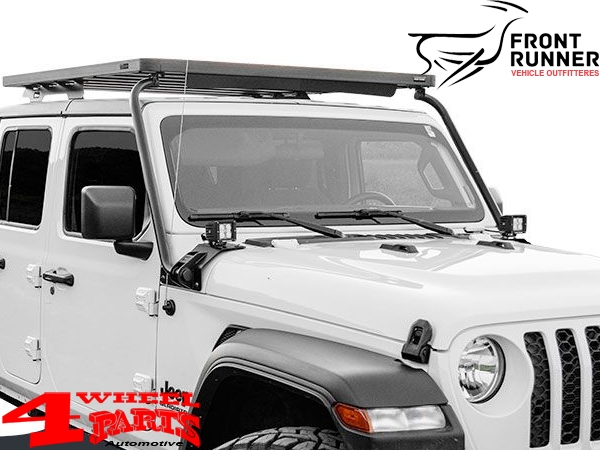

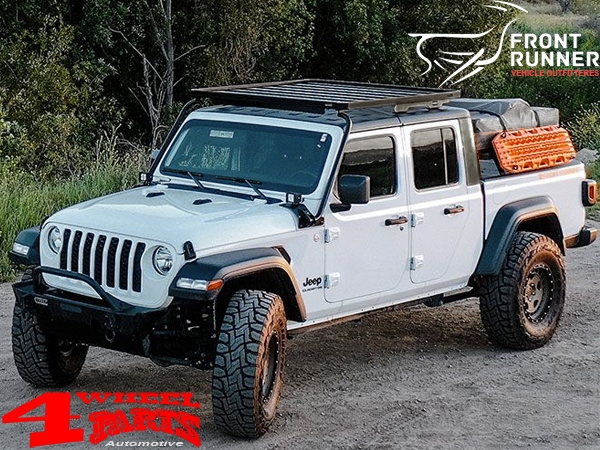

Roof Rack Kit Frontrunner Slimline II Extreme, Platform 1425 x 1560mm

Fits Hardtop Model, can also be used in the open version.

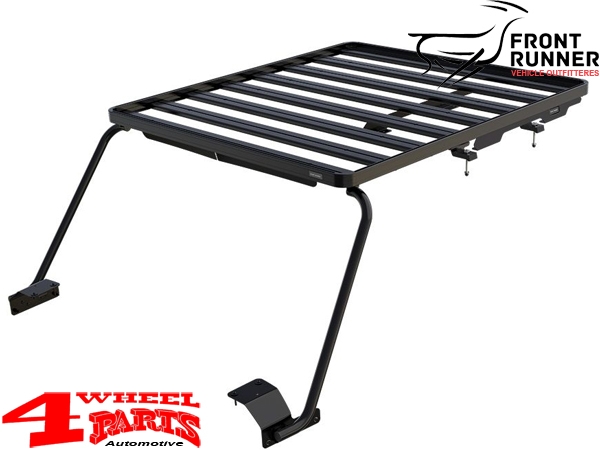

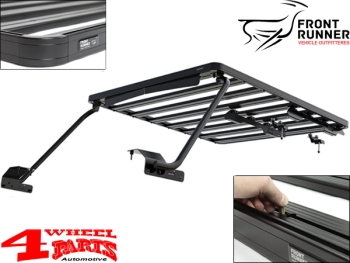

This Slimline II kit contains a 1560mm long Slimline II tray, a wind deflector, and the JT Extreme mounting system.

This Slimline II rack kit contains all the components needed to mount the Slimline II cargo carrying rack to a Jeep Gladiator JT including the Slimline II Tray (1425mm x 1560mm), the Jeep Extreme Mounting System and a Wind Deflector. Drilling is required for installation.

This rugged, sophisticated, high performance, nearly indestructible rack system allows you to quickly remove the Freedom Panels and works with the hardtop roof on or with no roof at all.

All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle.

For further information on installation, please see the fitment instructions in the INSTALL tab.

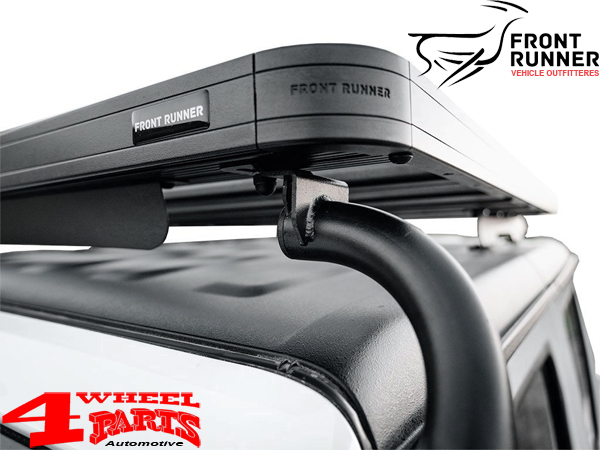

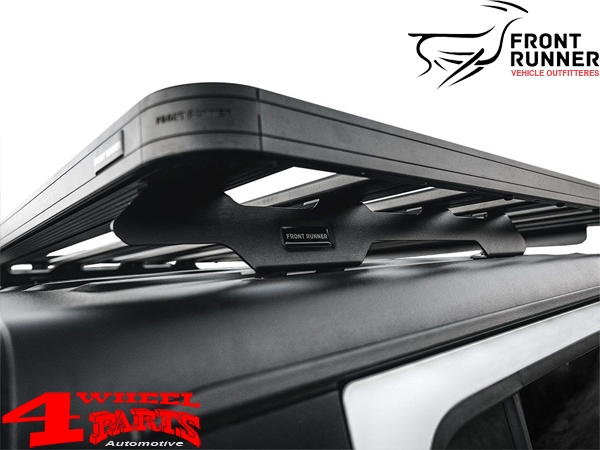

The Jeep Extreme mounting system bolts to the roll bar with middle and rear brackets. This unobtrusive, high performance, nearly indestructible mounting solution allows you to quickly remove the Freedom Panels and works with the hardtop or with no roof at all. Freedom Panels can be quickly and easily removed with rack in place. The cargo weight is evenly distributed across the roll bars and body of the jeep, placing zero weight on the hardtop itself.

Approximate Installed Weight 39 kg

The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.

To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot, Grab-on Foot or Strap-On Foot listed above.

If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/ 2") to the height of the Legs to determine the height of the rack from your vehicle’s rain gutters.

If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of

Consisting of:
2 x FAJL004 - Front Bar Roof Rack Mount (Pair) Installation Instruction:
2 x FAJT001 / FAJT002 - Inner brackets and Foot Rail Installation Instruction:
1 x RRSTJ08 - Slimline II Tray - 1425mm(W) X 1560mm(L) Installation Instruction:

Shipping Dimensions:
Width 520mm (20")
Length 1615mm (64")
Height 450mm (18")

Shipping Weight: 41,0kg (90.1lbs)

Video:
