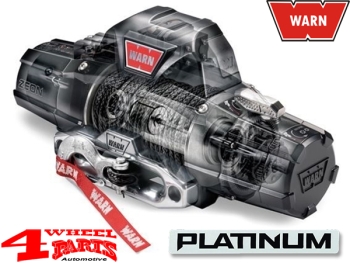

WARN Electric Winch ZEON 12-S PLATINUM Series - 5443 kg 12V incl. Synthetic Winch Rope

incl. advanced wireless Remote - winch rope supplied: 30 m x 9.5 mm

Advanced technology, Ultimate Performance winch and a 5443 kg pulling capacity

IP68 = Protected from dust and penetrating water when immersed without time limitation

The ZEON 12-S Platinum is built for those who push the limits-with double the durability, 20% faster line speed, and extreme IP68-rated waterproofing. The Advanced Wireless Remote controls not only the winch, but also the clutch and other accessories. With a 12.000 lb. pulling capacity, high-performance motor package, and galvanized Steel Winch Cable, you'll be equipped to go places others only dream about.

Features:

• Rated line pull of 12.000 lbs. (5443 kg) single-line
• Comes with 100' of 3/8" (30m of 9.52mm) Spydura
  synthetic rope   with a polished aluminum hawse fairlead
• Remote Controlled Clutch is engaged and disengaged with the Advanced Wireless Remote. The remote controls winch-in, winch-out, and freespool operations. The manual clutch has been   eliminated. No more re-engaging a manual clutch, with frozen fingers while standing in the mud
• The Advanced Wireless Remote gives you total control in the palm of your hand, allowing you to control the winch and up to two accessories. This sophisticated, advanced remote provides operator feedback on vehicle battery charge and winch motor temperature, controls operation of the winch clutch,  and more. Includes USB charging cable and car charger adapter
• All-new high-speed motor, stronger gears, and heat-treated ring gear deliver 20% faster line speed, best-in-class efficiency, and our highest durability rating
• Durable aluminum structure with flat black powder-coated finish and stainless steel fasteners delivers durability and maximum corrosion resistance-exceeding 400 hours of salt-spray testing
• Large diameter alloy winch drum with steel sleeve is strong, light weight, reduces rope wear, and has an integrated rope anchor for easy rope installation
• Extreme waterproofing meets rigorous IP68 standards--the highest rating in the WARN Truck/SUV winch lineup
• Automatic mechanical cone brake offers excellent control while winching
• Convertible control pack can be attached to the winch or remotely mounted, allowing for various winch mounting options and looks (Relocation kit required and sold separately). The new-style control pack with contactor and advanced controls gives you extreme reliability and weather resistance

Includes:

• Electrical controls: Contactor
• Advanced wireless remote
• integrated electric control box
• Durable cast-aluminum alloy housing
• waterproofing meets rigorous IP68 standards
• Durable aluminum structure with flat black powder-coated finish
• Includes aluminum hawse fairlead
• Rope-way clutch
• Spydura Synthetic Winch Rope with safaty winch hook
• Battery cable: 1,83 m
• CE conformity confirmation
• German manual

Specifications:

• Motor: 12V
• control: Contactor
• Rated line pull: 5443 kg
• Operation: wireless remote
• Geartrain: 3-stage planetary gear
• Gear reduction ratio: 216: 1
• Brake: Automatic mechanical cone
• Drum Size: 229 x 80 mm
• Winch rope supplied: 30 m x 9.5 mm
• Finish: Satin-black powder coat

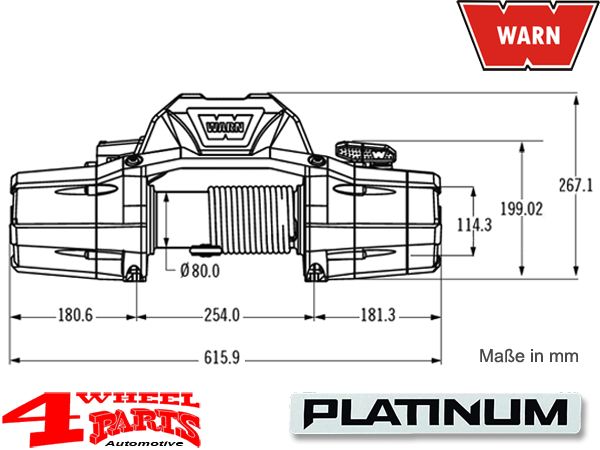

• Mounting bolt pattern: 254 mm x 114,3 mm
• Recommended Battery: 650 CCA minimum for winching
• Weight: 38 kg
• CE marking

A brand product by Warn Industries

Performance Specifications:
