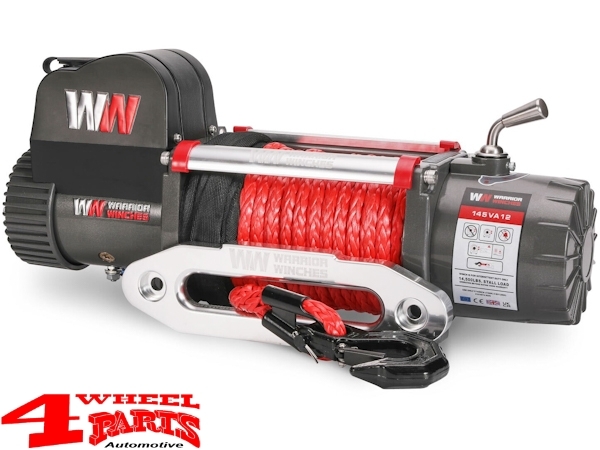

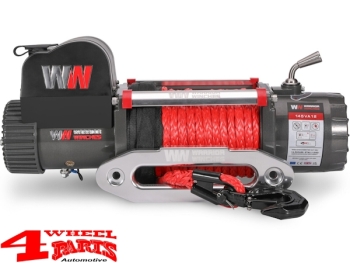

Electric Winch Warrior Samurai - 6577kg 12 V with Synthetic Winch Rope
REVOLUTIONARY DESIGN -
Premium winds now upgraded to V2 with external brake.
HEAVY DUTY - Removable high-performance hook,
splinter-resistant powder coating and a durable design.
Tightening power -
14.500 LB (6577 kg), ideal for salvage and 4x4 applications.
Brass fittings -
Massive brass contacts directly to the engine for efficient running
UPDATED REMOTE CONTROL -
Wireless 2.4-G remote control (only 12V model)
Warrior 14.500lb Samurai V2 Next Generation Winches
Since their launch, the Warrior Samurai winds have been their premium offerings. Now upgraded to V2, the high-speculation winds have only gotten better, making them ideal for reliable salvage and 4x4 applications. With an incredible traction of 14,500 LB or 6577 kg, this high-performance winch does the job with ease.
The outstanding feature of these improved winches is the addition of a revolutionary new external braking system. Unlike conventional winch brakes, the V2 Samurai brake is located at the end of the transmission and not in the drum. Even faster with a lower ampere absorption and a higher capacity to hold and lower the load - the benefits are numerous. In addition, the heat generation around the drum is reduced, which makes the use with synthetic ropes particularly safe.
It also features a high-quality reversible 7.2 horsepower 12V series winding motor with brass contacts that lead directly to the engine for efficient operation. It also features a sturdy, waterproof solenoid, a double-sealed drum and a full-steel planetary gearbox that runs quietly to keep the peace. Whether you opt for the stainless steel 4-way cable guide or the aluminum cable guide (synthetic rope), the Warrior Samurai V2 winds offer unbeatable performance.
With a speed of 1 m/min (430 amps) at full load, you can get your job done quickly and easily.
Scope of delivery:
• 1x electric winch 145VA12 with 12 volts
• Housing meets protection standard IP68
• 25 m long synthetic winch rope
• Radio remote control with padband
Pre-installed high-performance radio control
• Cable control 3,8 m cable hand control
• Includes aluminum hawse fairlead
• Black Tow Safety Hook
• Battery cable: 1,5 m
• CE certified
Technical details:
| Rated line pull: |
6577kg (14500lb) |
| Power consumption: |
At full load. 430 A |
| Connection: |
12 Volt |
| Rope speed: |
ca. 1,0 m / minutes at 6577kg |
| Geartrain: |
3-stage planetary gear |
| Gear reduction ratio: |
253:1 |
| Drum size : |
Ø 63 mm × 233 mm |
| Rope dimension: |
25 m x Ø 11mm |
| Total dimension: |
(L x B x H) 593 x 160 x 248 mm |
| Net weight: |
ca. 33 kg |
| Mounting bolt pattern: |
254 mm x 114,3 mm (10” x 4,5“) |
Replaces Part No: 15100.25 / 145VA12
A brand product by Warrior Industries USA
