Roll Bar Sport Rack Stealth with Basket Ranger + Raptor year 2023-
Ford Ranger 4 Gen. year 2023- Double Cab
Ford Ranger Raptor 4 Gen. year 2023- Double Cab
Attention shipping is done by a freight forwarder!
Black Stealth Rollbar with Luggage Basket +
Aluminum Laoding Sill Protection with TÜV

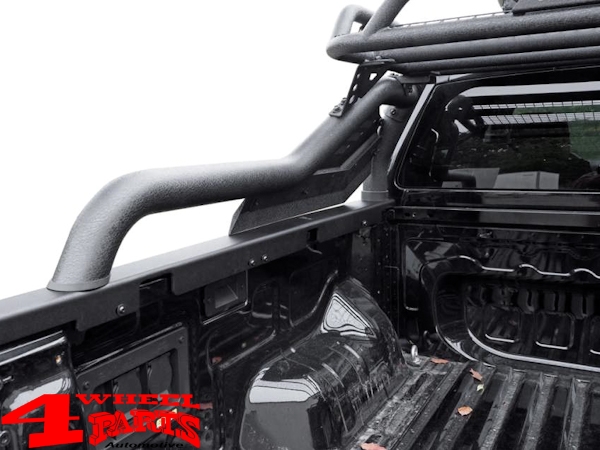

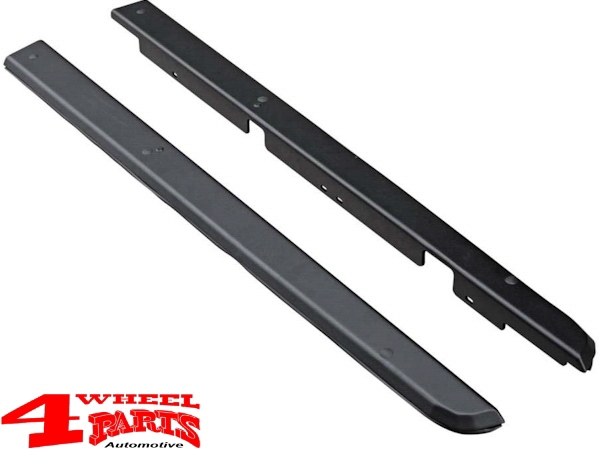

Loading sill protection / mounting rails:
We have developed this Aluminum loading Aluminum sill protection especially for the Ford Ranger/Ranger Raptor, which also serves as a fastening system for our roll bar. It adapts exactly to the shape of the loading sill and closes at the same height as the original plastic cover of the tailgate. If your Ranger is equipped with the factory-fitted roller blind, this can continue to be used without any problems. Corresponding cut-outs are provided in the loading sill rails. In combination with the HSP roll bar, the loading sill rails are attached to the existing attachment points on the loading sill. Additional holes are not necessary.
Roll bar:
Extremely robust, black textured roll bar in unmistakable "Black Stealth" look. The massive, beefy tubes with a huge diameter of 76 mm, the additional mash plates with a thickness of 3 mm and the luggage basket offer your vehicle a brute look. The luggage basket, which can also be mounted only optionally, allows a maximum load of 65 kg. The mounting of the bracket is done directly on the loading sill, additional drilling is necessary for this.
Note:

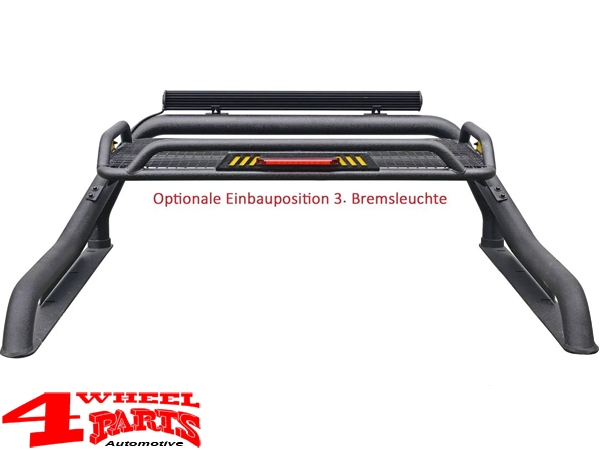

Provided that your vehicle belongs to class N1, no third brake light is required according to ECE48 6.7.1. However, according to §30 STVZO it can be interpreted as a deterioration of the vehicle condition. For this case, an additional, third brake light is included with the roll bar. This can then be additionally mounted on the bar.
Our roll bar is delivered with a TÜV parts certificate. Thus, the required registration is no longer a problem.
Details:
Suitable for the following vehicles:
Ford Ranger Raptor 4 Gen. year 2023- Double Cab
Attention shipping is done by a freight forwarder!
Black Stealth Rollbar with Luggage Basket +
Aluminum Laoding Sill Protection with TÜV
Loading sill protection / mounting rails:
We have developed this Aluminum loading Aluminum sill protection especially for the Ford Ranger/Ranger Raptor, which also serves as a fastening system for our roll bar. It adapts exactly to the shape of the loading sill and closes at the same height as the original plastic cover of the tailgate. If your Ranger is equipped with the factory-fitted roller blind, this can continue to be used without any problems. Corresponding cut-outs are provided in the loading sill rails. In combination with the HSP roll bar, the loading sill rails are attached to the existing attachment points on the loading sill. Additional holes are not necessary.
Roll bar:
Extremely robust, black textured roll bar in unmistakable "Black Stealth" look. The massive, beefy tubes with a huge diameter of 76 mm, the additional mash plates with a thickness of 3 mm and the luggage basket offer your vehicle a brute look. The luggage basket, which can also be mounted only optionally, allows a maximum load of 65 kg. The mounting of the bracket is done directly on the loading sill, additional drilling is necessary for this.
Note:
Provided that your vehicle belongs to class N1, no third brake light is required according to ECE48 6.7.1. However, according to §30 STVZO it can be interpreted as a deterioration of the vehicle condition. For this case, an additional, third brake light is included with the roll bar. This can then be additionally mounted on the bar.
Our roll bar is delivered with a TÜV parts certificate. Thus, the required registration is no longer a problem.
Details:
- Material: Solid, black matt powder-coated Ø 76mm steel tube
- Mounting rail material: black powder-coated aluminum
- the additionally mountable luggage basket allows a maximum load of 65 kg
- simple mounting, directly on the loading sill - additional drilling is necessary
- incl. mounting material + illustrated German mounting instructions
- incl. TÜV parts certificate
Suitable for the following vehicles:
- Manufacturer: Ford
- Trade name: Ranger (4WD)
- Vehicle type: P703 T6.2
- Year of construction: from 2023-
- ETG-No : e5*2007/46*0080*..
