Suzuki Jimny FJ year 98-18

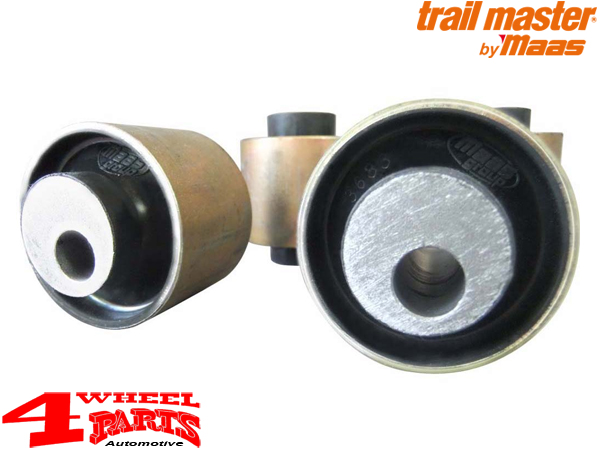

Excentric Bushing Kit from Trailmaster Control Arm Front
• Set includes sockets, complete for both Control Arms
• The steel sleeves are cast in rubber
• First choice for suspension adjustments
Manufacturing tolerances since it is in the region of the axis in Suzuki, manages the steering damper "only" 99% of the cases, the flutter the steering completely turn off.
For the rare cases where the steering damper not be 100% can be effectively used, is now a eccentric bushing kit been designed for the front longitudinal link, by the tracking of the front axle to change by about 2 1/2 degrees.
We use this primarily as an eccentric bushings in stock. Here, the holes are not in the center (center) of the bush, but offset (eccentric). This arrangement allows the mechanic at assembly to move the position of the component that receives the sleeve.
The most common application of these bushings in trailing arms of front axles, to correct the caster angle after a lift kit. This leads to a significantly improved directional stability of the vehicle.
A Brand Product of Trail Master by Maas
