Jeep Wrangler JK year 07-18 with 2,8 L CRD + 3,6 + 3,8 L of 130 - 209KW
Jeep Wrangler JK Unlimited year 07-18 with 2,8 L CRD + 3,6 + 3,8 L of 130 - 209KW
Jeep Wrangler JL year 18-24 with 2,2 L CRD + 2,0 + 3,6 L of 147 - 213KW
Jeep Wrangler JL Unlimited year 18-24 with 2,2 L CRD + 2,0 + 3,6 L of 147 - 213KW
Jeep Wrangler JL Unlimited year. 21-24 with 2,0 L 4xe Plug-in-Hybrid
Jeep Gladiator JT year 19-24 with 3,0 L CRD + 3,6 L V6 of 194 - 213KW

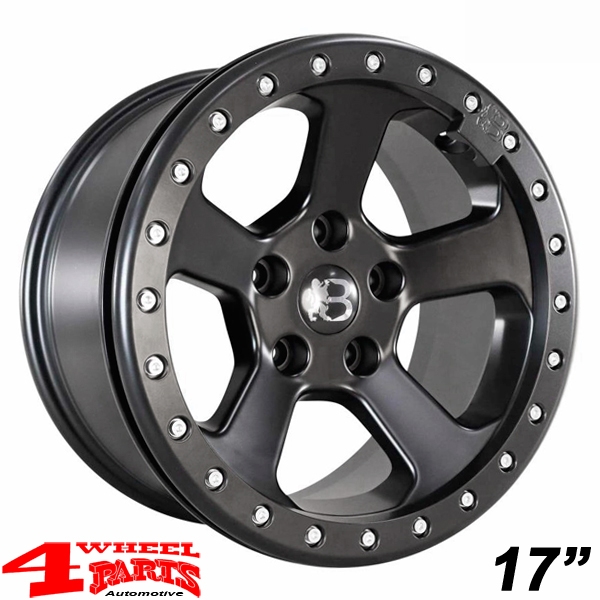

1 Aluminum Wheel Bawarrion Alufelge Beadlock² 9x17 ET +4 Beadlockring black matt, hub centric
The Bawarrion Bon'Z Beadlock was introduced in 2016. Within a very short time it became one of the best-selling alloy wheels for the Jeep Wrangler in Europe. Hard-core off-roaders appreciated the indestructibility of the extremely stable wheel and the well thought-out details such as the extra stable beadlock ring with integrated valve protection and countersunk beadlock screws. Many manufacturers have tried to copy the Bawarrion Bon'Z Beadlock but never really succeeded. Bawarrion did not rest on its laurels and continued to develop what was actually the perfect wheel. The clear yet attractive design of the Beadlock² was retained compared to the previous Beadlock. This is the only way to prevent dirt and stones from getting stuck on unnecessary beads, edges and corners and to ensure that it is still easy to clean.
Beadlock:
The new width of 9" with an offset of 4mm enables TÜV-tested installation of 285/70R17 on the Jeep JK, JL or JT and up to size 39x13.50R17 for the toughest off-roaders. The wheel/tire combination is secured with the tried and tested 20mm thick beadlock ring with the well-known features.
Non-Beadlock:
The new width of 8" with an offset of 19mm enables TÜV-tested installation of the standard tires of the Jeep JK, JL or JT up to size 37x12.50R17. Even without securing the tire bead in the rim, the wheel is extremely suitable for off-road excursions. The specially developed reinforcement ring sits on the rim edge instead of the beadlock ring and stabilizes the outer edge of the rim.
Both installation options are tested to 940kg with a 3112mm rolling circumference and are therefore also suitable for weight increases on the Jeep.
Note: Not suitable for winter use! (Not resistant to grit)
The original wheel nuts can be used with these rims. Compatible with the standard tire pressure valves (TPMS)
Particularities:
The bead lock wheels have an extra robust Beadlockring which at low Tire pressure prevents the off-road tire to slip on the rim.
Rim color: matte black
Hub Cap color: matte black
Bawarrion Logo color: chrome
Reinforcement Ring color: matte black
Scope of delivery:
1 alloy wheel Bon´Z Beadlock²
1 Beadlock Ring black matt
1 hub cover
1 TÜV Certificate
Specifications:
Size: 9,0 J X 17
Backspacing: ET +4mm offset
Bolt pattern: 5 - 127mm
Center hole: Ø 71,6mm
Tightening torque:
130 Nm für Typ: JK
165 Nm für Typ: JL/JT
Load capacity: 940kg at 3112mm rolling circumference
Registered tire sizes:
285/70R17
295/70 R17
315/70 R17
33x12,50 R17
35x12,50 R17
37x12,50 R17
37x13,50 R17
39x13,50 R17
TÜV registration with all required sizes
A Brand Product by Bawarrion Wheels
Tire-related conditions and notes to your desired Wheel and tire combination, please refer to the report.
Please note!
Vehicle type, KW, tire size, tire load capacity, body-focused conditions.
